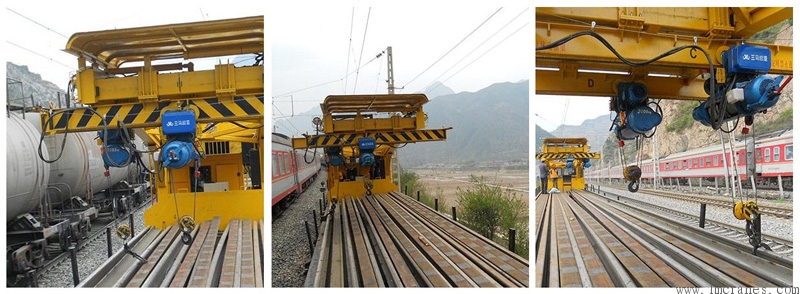

Double-rope rack trolley hoist is a special electric hoist used by railway works and engineering departments in railway maintenance. It is usually installed and used together with LSD-_A type rail-taking device. It is especially suitable for the engineering departments to carry out large-scale rail-taking, rail-laying, rail-changing work, which can effectively improve the operational efficiency
.
1. Deepening screw drum device and widening guide device greatly reduce the possibility of rope disorder < br />.
2. The running trolley is driven by gears and racks, and the climbing and anti-skid are in place in one step;
3. The running trolley is perpendicular to the main body of the hoist, the double rope-out structure and the double pulley hook make the structure of the whole machine more compact and the clearance height lower < br />.
4. Standard manual release device to ensure safe release of heavy objects from outdoor operation at any time when power is cut off, fast and convenient < br />.
5. The control part adopts Schneider Electric of Germany, which has reliable performance, high sensitivity and long service life
.
6. IP44, IP54 and IP55 are more suitable for outdoor use
Scope of application:
It can be widely used in railway works, electrical affairs, engineering departments, mining areas, forest areas, warehouses and other railway lines < br />.
Type of gourd
CD1/MD1 double-rope hoist (rack trolley, special for rail and railway)
Lifting weight (ton)
Zero point five
One
Two
Three
Five
Ten
Maximum elevation & nbsp; (m)
18 m
18 m
18 m
18 m
18 m
30 m
Work level
M4
Wire rope rate
4/2
4/2
4/2
Single-speed hoist lifting speed & nbsp; (m / min)
Eight
Eight
Seven
Hoisting speed of double-speed hoist & nbsp; (m / min)
8/0.8
8/0.8
7/0.7
Single speed hoist motor & nbsp; (kW)
Zero point eight
One point five
Three
Four point five
Seven point five
Thirteen
Double-speed hoist motor & nbsp; (kW)
0.8/0.2
1.5/0.2
3.0/0.4
4.5/0.4
7.5/0.8
13.0/1.5
Running motor (kW)
Zero point two zero
Zero point two zero
Zero Point Four Zero
Zero Point Four Zero
Zero point five zero
2× 0.5
Stationary gourd & nbsp; (A) type
√
√
√
√
√
√
Monorail trolley hoist & nbsp; (D) type
√
√
√
√
√
√
